Cost effective 19" dimmer

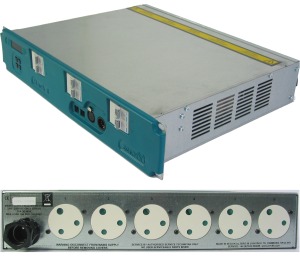

The Rack 6 is an economical choice for those wanting a rack mount DMX dimmer. Housed in a compact 2U unit the Rack 6 offers users six 10 amp circuits of dimming control. Using the latest electronic and electrical designs the Rack 6 offers real value for money. All operator controls are available through a simple, intuitive interface.

The Rack 6 is not limited in features however. Offering 12 memories, a preheat per channel, three dimmer curves and Chilli-Net compatibility the Rack 6 offers users sophistication not usually found in a dimmer in this price range.

With a range of socket options, CE certification and a three year warranty the Rack 6 is the ideal choice for users looking for a cost effective touring dimmer.

• Number of chanels: 6
• Channel capacity: 0.1A min / 10 A max
• Total dimmer capacity: 60 Amps
• Dimmer Duty Cycle: 100%
• Supply Voltage: 230V (+10% -18%)
• Single Phase (2 wire)
• Three Phase Star (4 wire)
• Supply Frequency: 45 – 65Hz autotracking
• Rise Time: 80 uS
• Control Input: DMX512 (Isolated) via 5 Pin XLR fixed male with loop
• through and selectable termination
• ChilliNet enabled (responds to all areas/zones)
• Channel Outlet options:
• 6 x UK 15 Amp
• 6 x CEE17
• 6 x Schuko
• Single Socapex
• Single Harting
• 6 x French
• Single Dutch Harting
• Dimmer Laws: 3 dimmer laws (Normal, Linear, Switch)
• Memories: 12 static
• User Interface: 7 segment display with 4 navigation keys
• DMX fail mode: DMX Hold, Fade to Black or Fade to Memory
• Programmable channel attributes:
• n Preheat per channel (5%)
• n Dimmer law
• Channel Protection: 10A single pole thermal magnetic circuit breaker
• (French version has neutral disconnect)
• Cooling: Side mounted fan
• Dimensions: 88mm (H) x 483mm (W) x 360mm (D)
• Weight: 8.0kg
• Operating Temperature: +5oC to +40oC
• Humidity: 5% to 95% Non condensing
